You may have guessed from the name, but Dawes' new ARC II is an improved version of their previously very popular ARC folding electric bike.
You may have guessed from the name, but Dawes' new ARC II is an improved version of their previously very popular ARC folding electric bike.
Dawes

Dawes ARC II Electric Folding Bike in Blue/Grey

£1,299.99
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

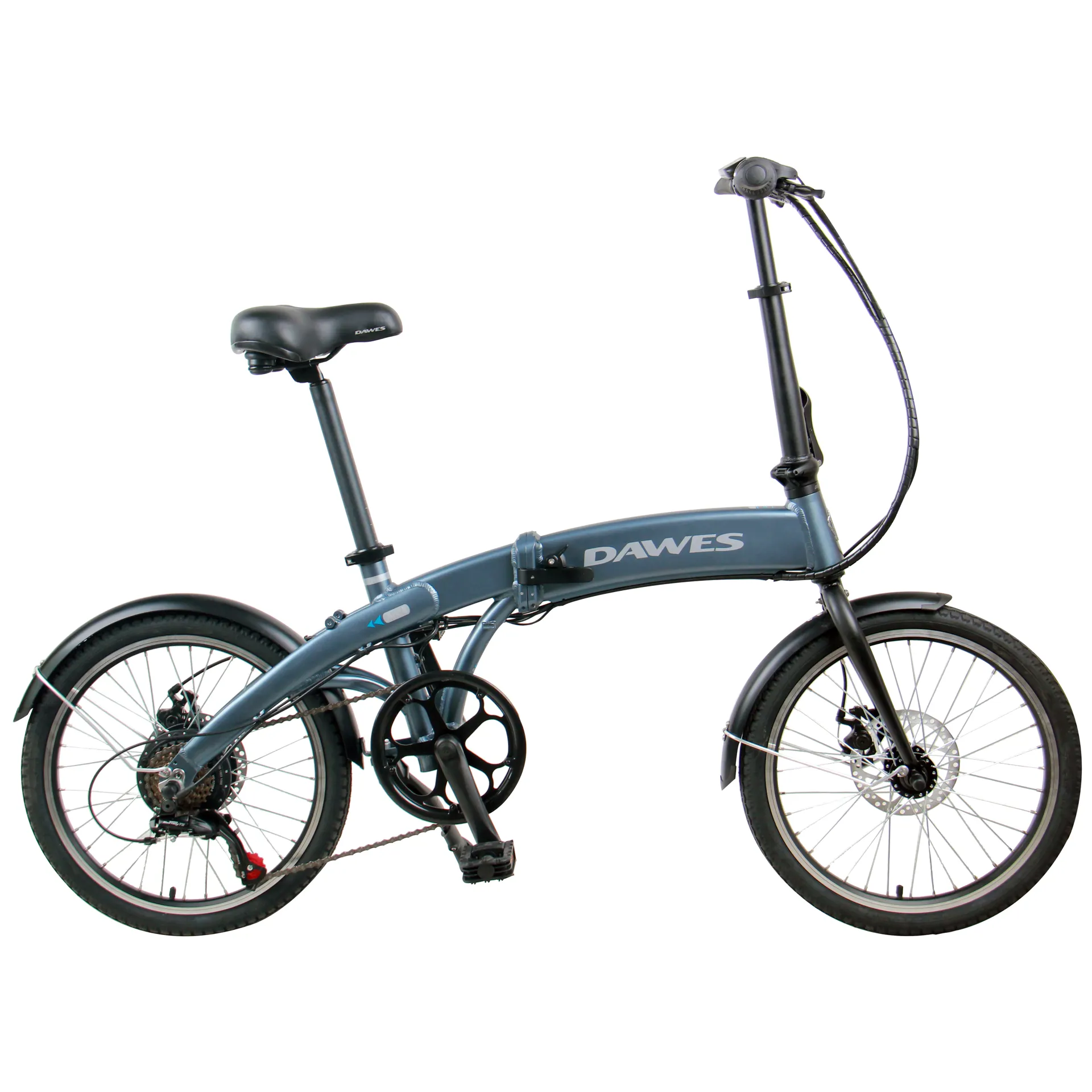

Dawes ARC II Electric Folding Bike in Blue/Grey

Season:2022

Brand:Dawes

Code:6370020

You may have guessed from the name, but Dawes' new ARC II is an improved version of their previously very popular ARC folding electric bike.

Not only does an electric bike offer the convenience of allowing you to get further, quicker ...but this model also neatly folds away to be stored at home, at the office or on public transport. The frame has received the greatest improvement with its more sleek looking design, and the battery is discretely hidden away inside the tubing. Not only does it power the 250W BAFANG rear motor, but it also has a port for charging mobile devices on the move too! On a full charge you’ll have no issues riding approximately 30-35km which should be more than enough for most commuters and leisure cyclists alike. And, as with all Dawes' e-bikes, you can charge the battery on or off the bike.

They find the 20" wheel size offers the perfect blend of comfort, stability and speed whilst also being small enough to fold down to an easy to manage size. All of this, coupled with a fully adjustable, telescopic handlebar stem, 550mm seat post, powerful mechanical disc brakes and a Shimano 6 speed drivetrain, Dawes thinks any ARC to follow this is going to have a lot to live up to!

Technical Information
  • Maximum Range
    22 miles / 35km
  • Recharge Time
    5 hours
  • Maximum Assisted Speed
    15.5mph / 25kmh
  • Motor
    Bafang 36V 250W motor
  • Motor Type
    Rear hub motor
  • Motor Torque
    54Nm
  • Battery
    238Wh (36V 6.6Ah)
  • Battery Type
    Integrated with USB charging function
  • Charger
    3 pin UK plug
  • Display
    Handlebar mounted LED display, 3 level power assist & walk assist
  • Speed Sensor
    12 point pedal sensor
  • Frame
    Alloy folding frame with integrated battery
  • Frame Size
    13" (Folding)
  • Fork
    Hi-tensile steel
  • Headset
    1" threaded
  • Handlebar
    Flat, 600mm wide
  • Stem
    Alloy telescopic folding stem
  • Grips
    Black ergo comfort grips
  • Gear Shifters
    Shimano Revoshift, 6 speed
  • Rear Derailleur
    Shimano RD-TZ500, 6 speed
  • Chain
    KMC Z7
  • Cassette/Freewheel
    Shimano 6 speed freewheel, 14-28T
  • Chainset
    170mm crank, 52T chainring
  • Number of Gears
    6
  • Bottom Bracket
    Cartidge type, 122.5mm
  • Pedals
    Folding pedals for improved storage
  • Brakes
    Mechanical disc brakes, 160mm rotors
  • Brake Levers
    Alloy lever including motor cut-off switch
  • Front Hub
    36 hole, Alloy nutted
  • Rear Hub
    Bafang 36V 250W motor
  • Rims
    20" double wall alloy rims with CNC sidewall
  • Tyres
    20 x 1.75" city tyres
  • Saddle
    Comfort saddle
  • Seat Post
    34mm x 55mm
  • Mudguards
    Full length, black steel
  • Kickstand
    Alloy centre mount
  • Pannier Rack
    Not included
  • Weight
    19.5kg
